Keep Leak Testing Simple
Save working space with the SOLARY SD601 hanging smoke leak detector. Its smoke-only operation and fixed 8L/min output offer a focused setup for visual inspection, while the built-in pump removes the need for an external air compressor. Choose a compact hanging tester for workshops that value straightforward equipment.
Input voltage: DC12V. Power: 65W. Operating mode: Smoke Mode.
Built for Daily Use
- Rated 8L/min output: a straightforward configuration for daily inspection.
- Focused smoke inspection: trace visible smoke escaping from the prepared test section.
- Smoke-only operation: a focused setup for visual leak tracing.
- Built-in air pump: no external air compressor required for the machine’s air supply.
- Compact hanging design: position the tester using the supplied hook.
Hang It Within Reach
Use the supplied hook to position the compact unit near the prepared test section. The 137X200X193mm body supports convenient placement without a carry handle. Metal-button controls are easy to wipe clean, helping keep the operating panel ready for the next job.
Less Cleanup. More Convenience.
Easy-to-wipe metal buttons help reduce oil and grime buildup around the controls. Hang the compact body from the supplied hook to keep it conveniently positioned near the inspection area. Built-in overheat protection stops the entire machine if overheating occurs and automatically resumes operation after cooling.
Trace Hidden Leaks
Use SD601 for intake leak testing, vacuum leak inspection and compatible vehicle pipework checks under the applicable service procedure. Visible smoke helps direct attention to unintended openings around hoses, fittings and seals, supporting a more focused inspection before repair decisions. For EVAP leak testing and other pressure-sensitive circuits, confirm the required setup and permitted test pressure. The 18-23psi catalog output-pressure value is not a universal vehicle test setting.
Technical Specifications
| Model | SD601 |
|---|---|
| Input Voltage | DC12V |
| Power | 65W |
| Output Pressure | 18-23psi |
| Air Supply | Built-in Air Pump |
| Operating Mode | Smoke Mode |
| Output Flow | 8L/min |
| Pressure Display | Not included |
| Flow Meter | Not included |
| Oil-Level Window | Not included |
| Test Oil Max Capacity | 30ml |
| Product Size | 137X200X193mm |
| Package Size | 250X230X220mm |
| Gross Weight | 2.6kg |
| Standard Accessories | A |

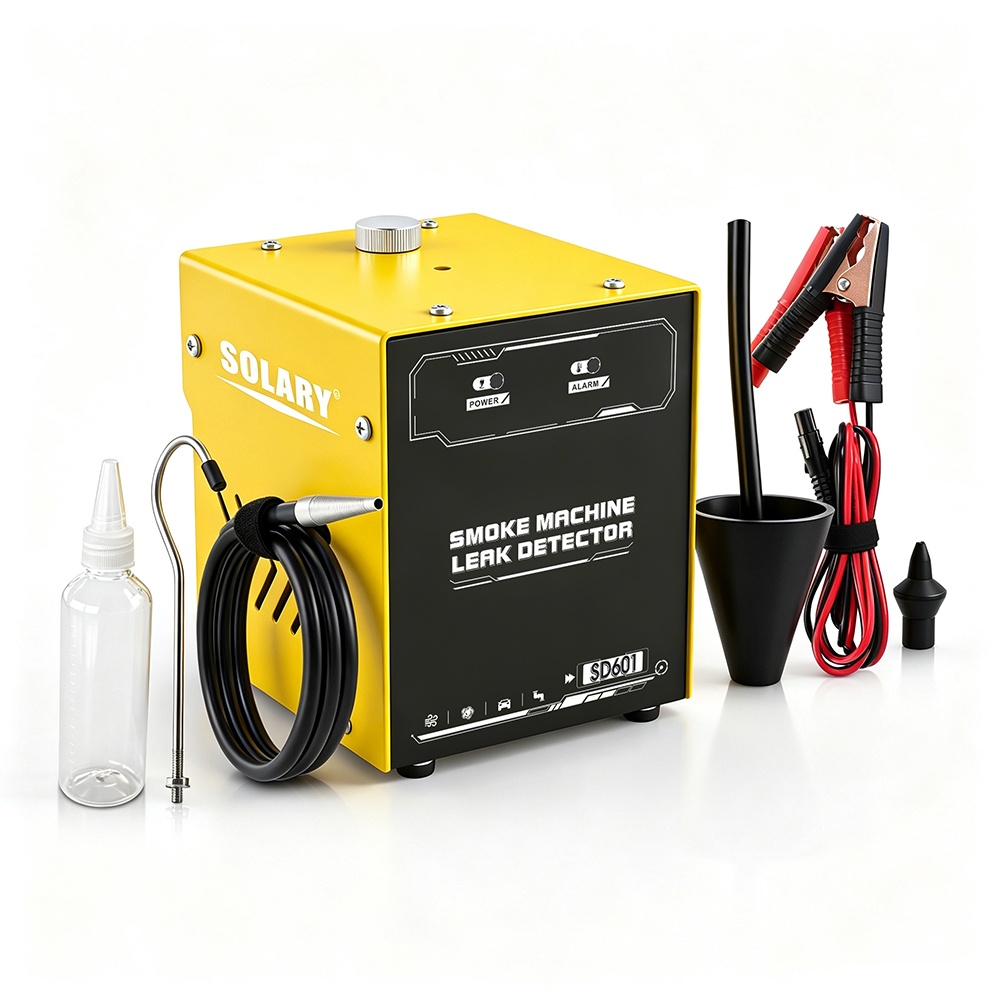

Standard Accessories
| Power cord | 1 set |
|---|---|
| Pipe | 1 pc |
| Cone adapter set | 1 pc |
| Pipe adapter | 1 pc |
| Refueling bottle | 1 set |
| Hook | 1 set |
Prepare for the Next Test
Use recommended baby oil (BB oil): 20ml for first use, then refill with 30ml only after the previous oil has been used up. Do not exceed the 30ml maximum capacity. Smoke normally begins in approximately 10 seconds after activation; this is startup time, not a promised diagnosis time. Follow the model instructions for preparation, DC12V input connection and operation.
Buyer Questions
Why choose SD601 for my workshop?
Use the supplied hook to position the compact unit near the prepared test section. The 137X200X193mm body supports convenient placement without a carry handle. Metal-button controls are easy to wipe clean, helping keep the operating panel ready for the next job.
What input voltage does SD601 require?
The specified input voltage is DC12V, with a power rating of 65W.
Which modes and flow settings are available?
Smoke Mode. The rated output flow is 8L/min. This configuration does not offer four-level flow selection.
How can I monitor pressure and oil?
This model does not include a pressure gauge. An oil-level window is not included.
What is the packaged weight?
SD601 has a catalog gross weight of 2.6kg. This is the gross weight, not the machine’s net weight.
What happens if the machine overheats?
Overheat protection stops the entire machine. Operation automatically resumes after cooling. The operator must still monitor the test.
How do I request a wholesale or OEM quote?
Send the model SD601, required quantity, destination country and logo or packaging requirements. SOLARY will confirm available options, pricing, package contents and estimated dispatch time.
Find Your Workshop Fit
Compare SD604 Hanging Pressure-Gauge Tester and SD605 Button-Controlled Flow Tester, or explore our automotive smoke leak detectors to choose the configuration that fits your requirements.
Factory Support for Your Order
Buying for a workshop, distribution business or equipment brand? SOLARY welcomes enquiries from automotive equipment distributors, wholesalers and importers. Explore our manufacturing and OEM/ODM services and confirm available branding and packaging options for your order.
Request Your SD601 Quote
Equip your workshop—or expand your diagnostic equipment range—with the SOLARY SD601. Share your required quantity, destination country, intended use and any logo or packaging requirements so we can prepare a quotation. Our team will confirm the configuration, package contents, pricing and estimated dispatch time.
RFQ details: Model SD601 · Quantity · Destination country · Workshop use or resale · Branding / packaging requirements
Technical reading: EPA background on vehicle evaporative emissions. This resource explains emissions background; it does not certify this product or specify its operating procedure.
