Product Overview
The SOLARY 5610D digital dent puller and stud welder brings MCU control and a digital panel to professional auto body repair. Continuously adjustable output supports washer and stud welding, carbon rod heating, heating and flattening, helping technicians manage several panel-repair operations with one machine.
Key Benefits
- Use a digital control interface: the front panel provides a dedicated interface for welding and heating settings.
- Select MCU control: the 5610D offers a different control system from the manual-control 5610.
- Adjust output for the operation: continuously adjustable output supports compatible welding and heating tasks.
- Keep multiple repair functions together: washer and stud welding, carbon rod heating and flattening support a coordinated repair workflow.
- Equip the workstation: the accessory selection includes electrodes, washers and pulling tools, with an optional cart available.
Applications
Designed for professional technicians and body shops seeking a digital-interface machine for compatible pulling-attachment welding, panel heating and flattening. It is also suited to distributors supplying digital auto body repair equipment.
Features & Functions

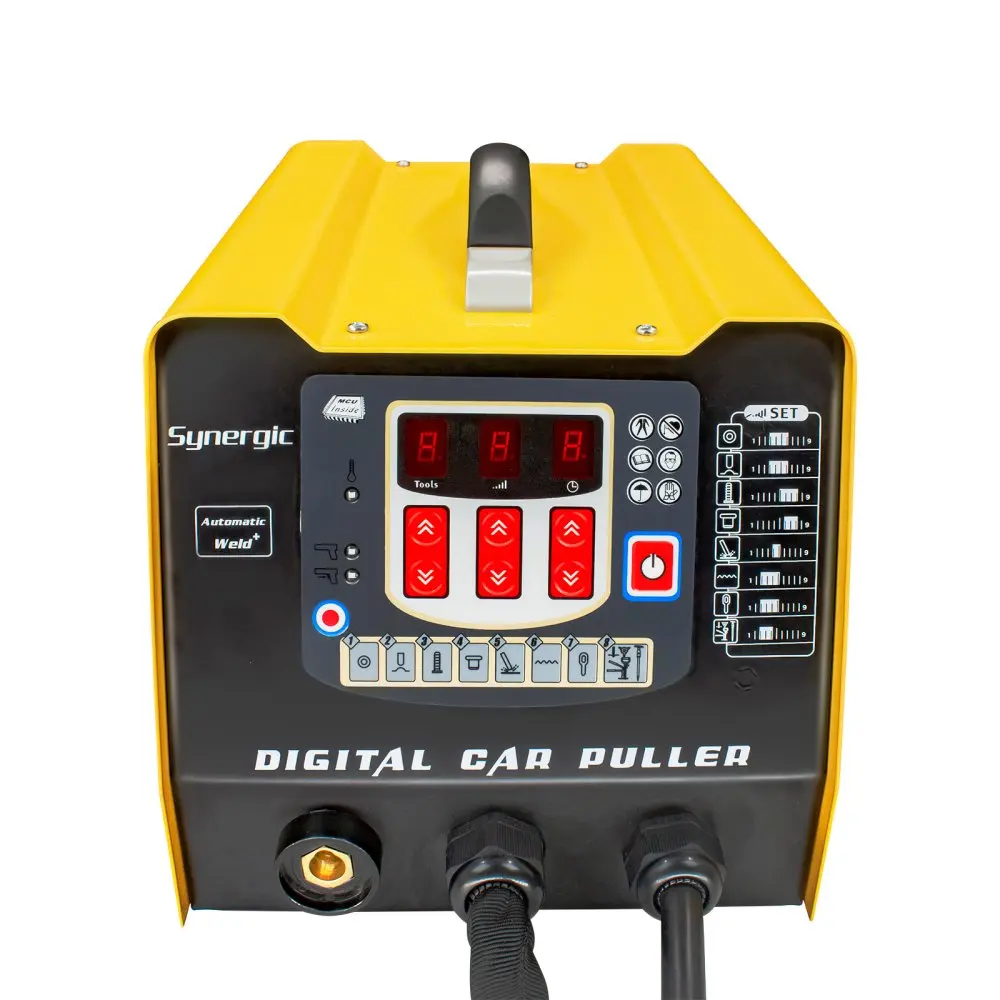

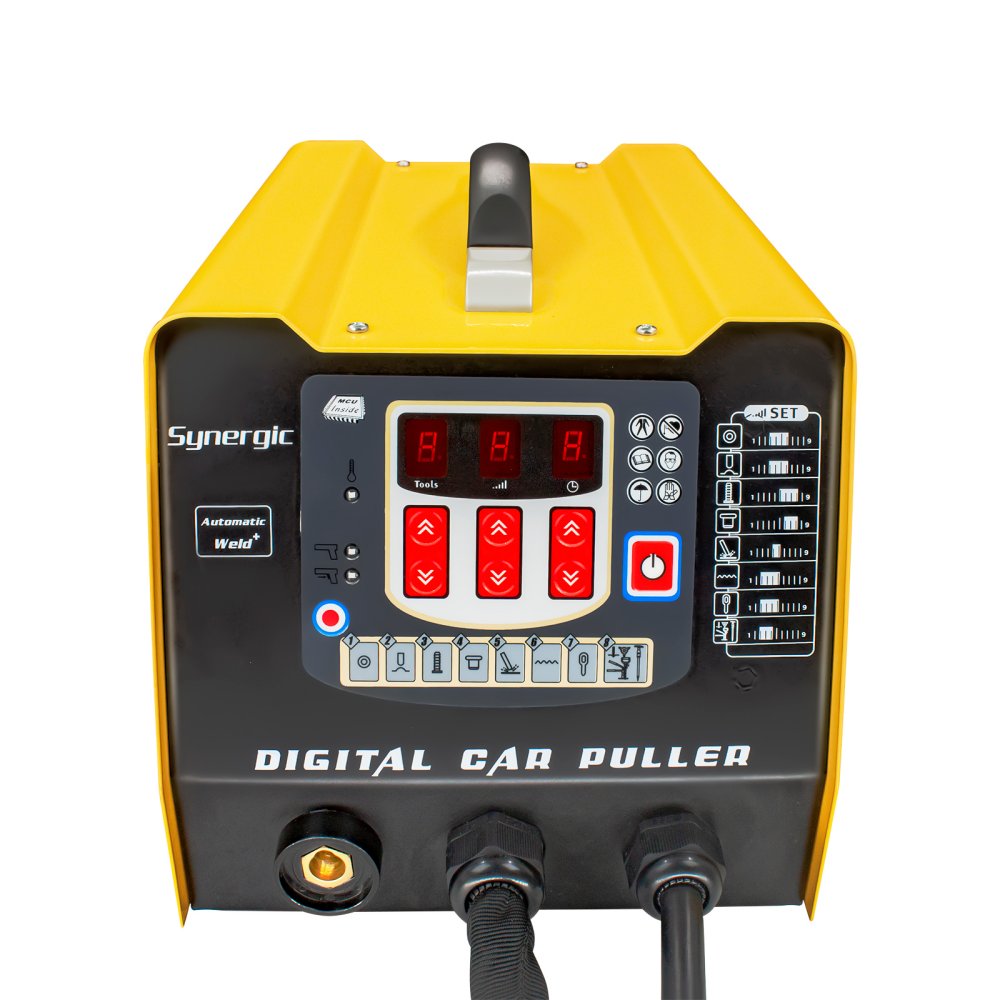

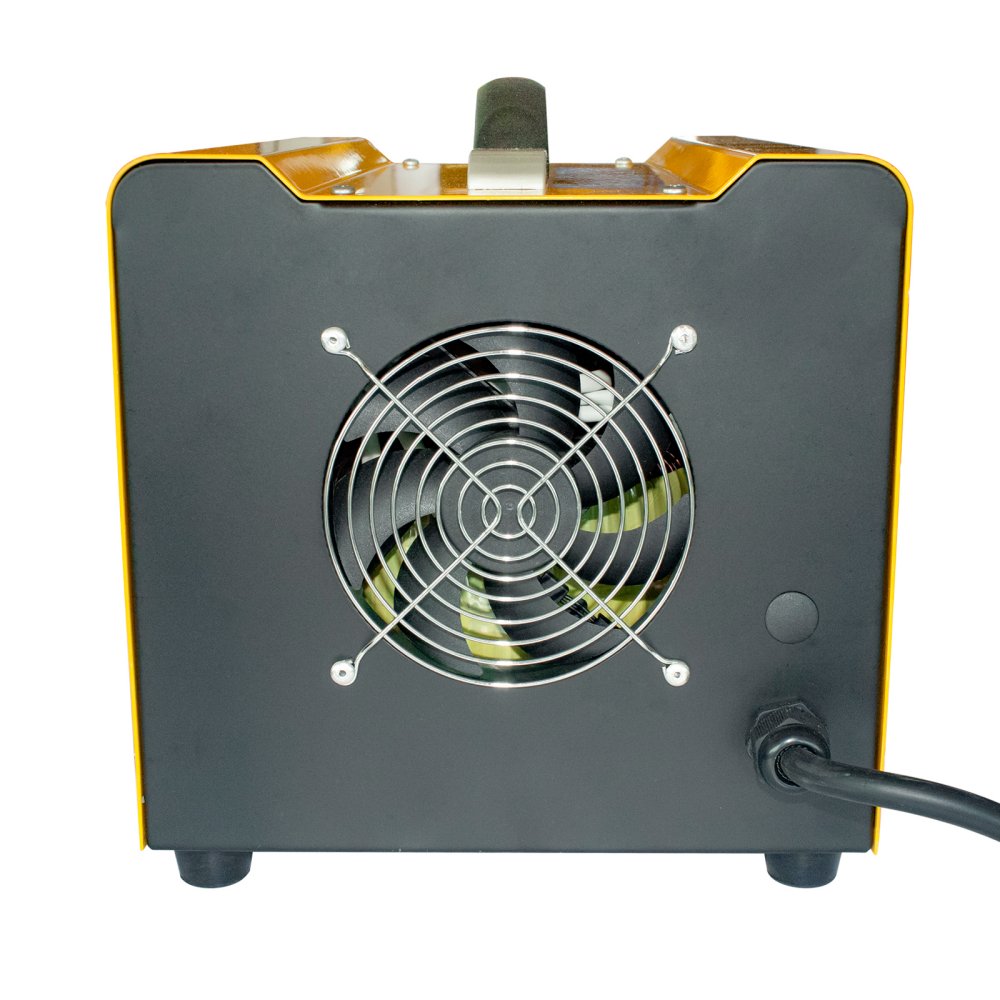

The 5610D combines an MCU-based digital panel with manual welding operation. It provides a 1000–3500A welding-current range and 10kVA maximum instantaneous power. Thermal protection and heat dissipation support heat management, while its welding and heating functions cover attachment welding and panel working.
Technical Specifications
| Model | 5610D |
|---|---|
| Rated voltage | 110V / 230V |
| Maximum instantaneous power | 10kVA |
| Secondary no-load voltage | 4–8V |
| Welding current | 1000–3500A |
| Protection rating | IP21 |
| Package dimensions | 50 × 33 × 35cm |
| Gross weight | 20.5kg |
How to Use
- Select the electrode and pulling attachment for the required welding or heating function.
- Prepare the repair area and connect the earth lead according to the operating instructions.
- Adjust the output for the selected operation and carry out the welding or heating task.
- Use the appropriate pulling or panel-working tool, following the vehicle repair procedure.
Use the machine according to its operating instructions and the approved repair or welding procedure.
Package Contents
| Carbon rods | 3 |
|---|---|
| Spot-welding electrode | 1 |
| Washer holder | 1 |
| Wavy wire, Ø1.6mm | 20 |
| Wavy-wire spot-welding electrode | 1 |
| Star washers | 10 |
| Washers | 50 |
| Pull hooks | 2 |
| Star-washer electrode | 1 |
| Pull-rod connector | 1 |
| Short pulling rod | 1 |
| Manual suction disc | 1 |
| Empty accessory box | 1 |
| Long pulling rod with seven-claw pulling hook | 1 |
| Spot-welding needles | 3 |
| Magnetic accessory | 1 |
Optional accessory: workshop tool cart.
FAQ
What makes the 5610D different from the 5610?
The 5610D uses a digital panel and MCU control. Both models have a 1000–3500A welding-current range and 10kVA maximum instantaneous power.
Does it support both welding and heating?
Yes. It combines washer and stud welding with carbon rod heating, heating and flattening.
Is the welding output adjustable?
Yes. The output is continuously adjustable for the selected repair operation.
What voltage options are available?
110V and 230V versions are listed. Specify your required voltage when ordering.
How much does the packed machine weigh?
The gross weight is 20.5kg, with package dimensions of 50 × 33 × 35cm.
