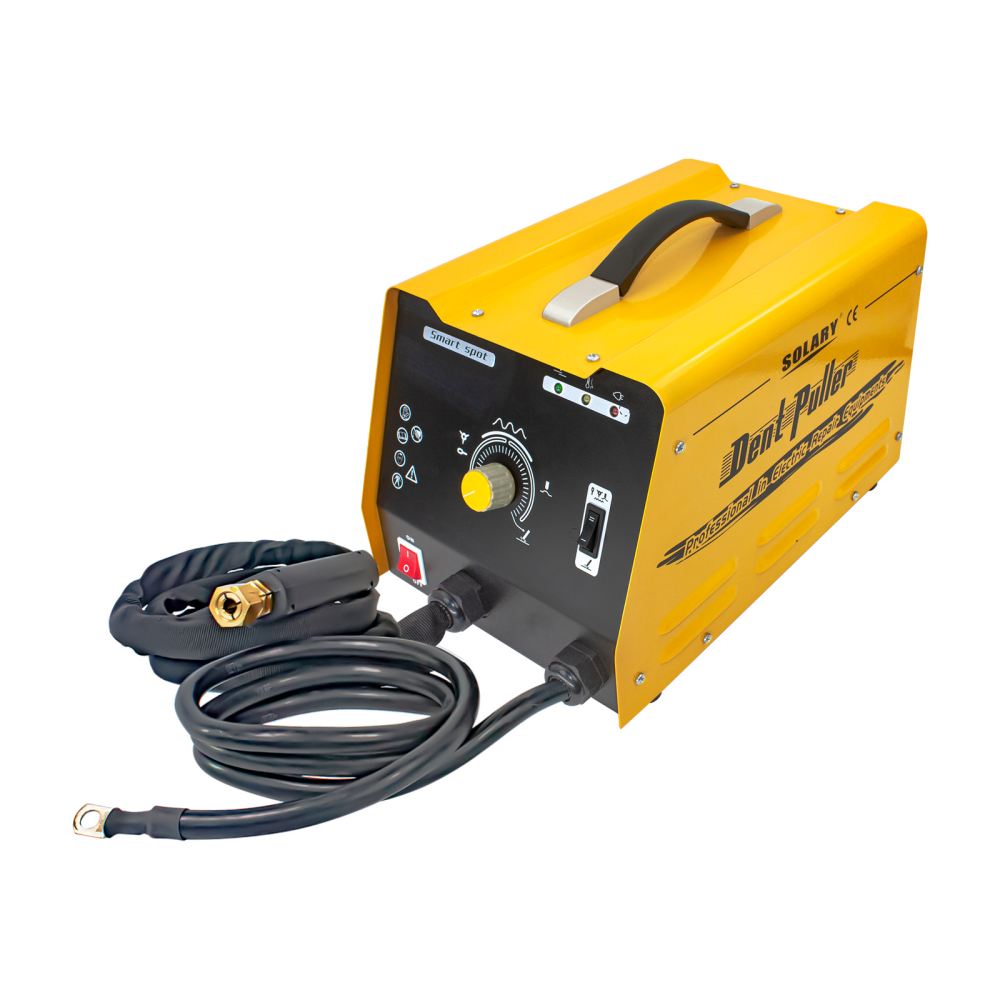

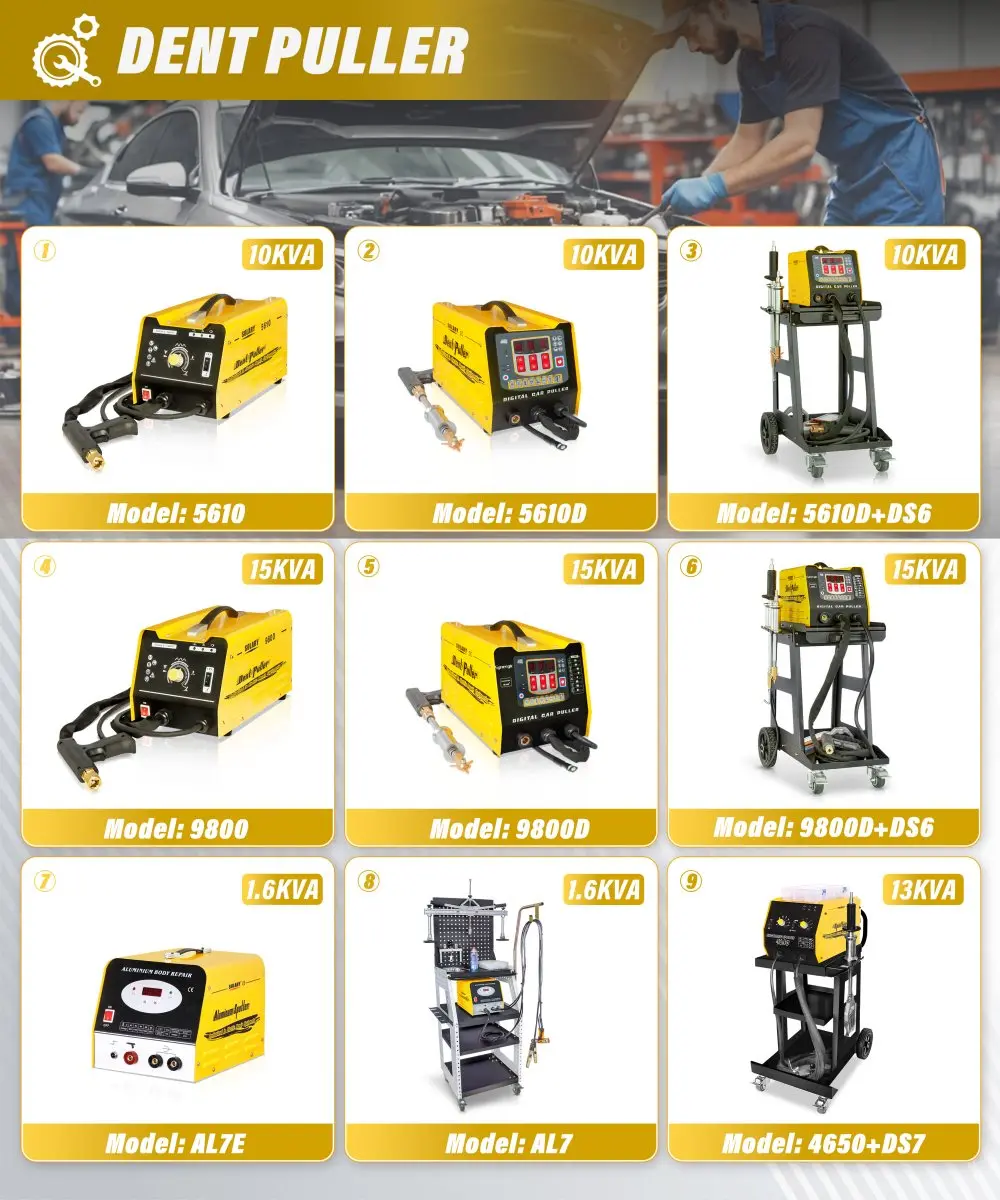

Product Overview
The SOLARY 5610 stud welder dent puller combines washer and stud welding with carbon rod heating, heating and flattening for professional automotive panel repair. Continuously adjustable output helps technicians select the setting for each operation, making it a versatile addition to an auto body workshop.
Key Benefits
- Adjust output for the task: continuously adjustable control supports different welding and heating operations.
- Create pulling attachment points: washer and stud welding prepares compatible connections for panel pulling.
- Combine several repair functions: carbon rod heating, heating and flattening extend the machine’s use beyond welding.
- Plan your workshop setup: the unit has a 50 × 33 × 35cm package and a gross weight of 20.5kg.
- Start with a practical accessory selection: pulling rods, washers and electrodes cover the listed repair functions.
Applications
For professional body shops welding compatible pulling attachments and carrying out panel heating and flattening. Equipment distributors can specify the required 110V or 230V version when preparing a workshop or market-specific order.
Features & Functions

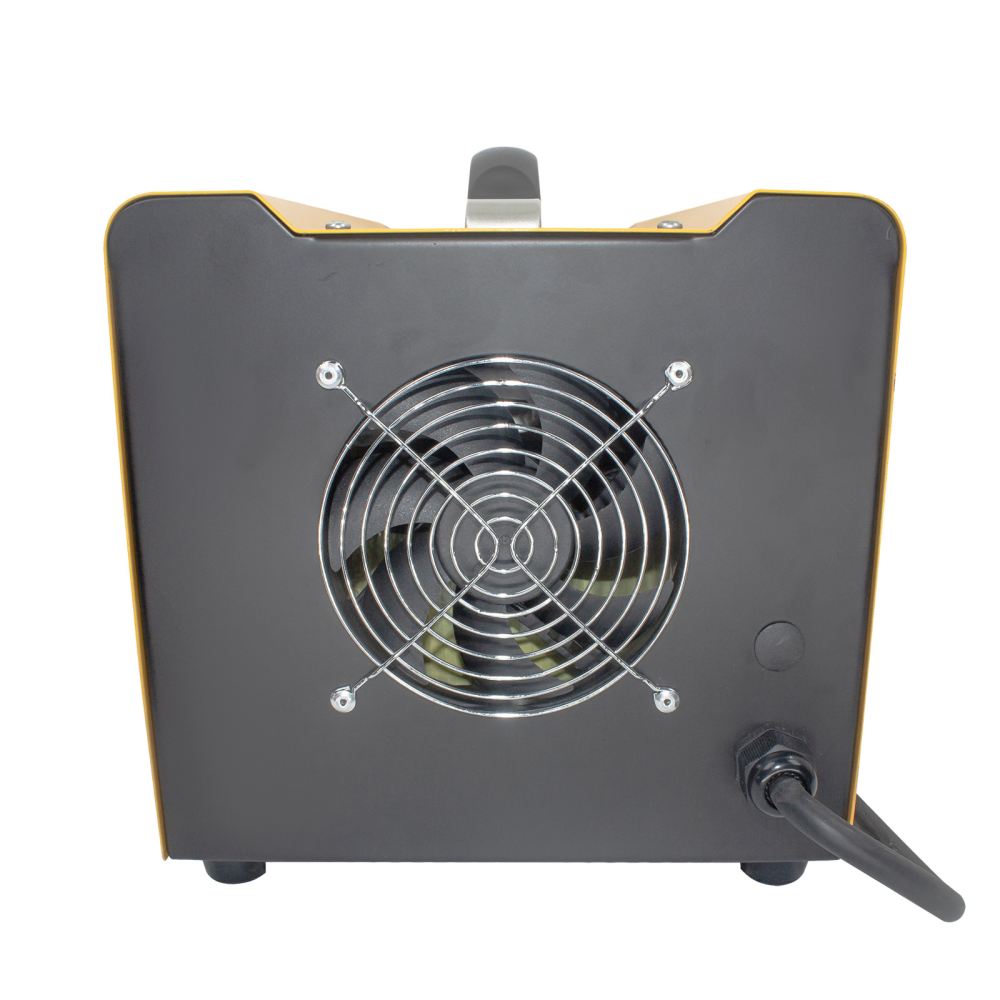

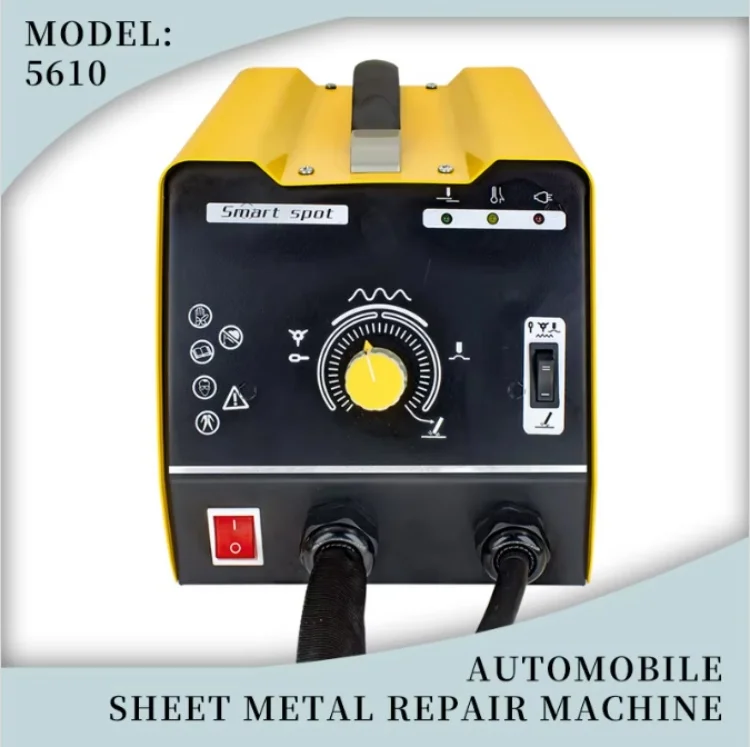

Manual output control keeps adjustment straightforward. The 5610 provides a 1000–3500A welding-current range and 10kVA maximum instantaneous power, together with thermal protection and heat dissipation. Washer and stud welding, carbon rod heating, heating and flattening are integrated in one panel-repair machine.
Technical Specifications
| Model | 5610 |
|---|---|
| Rated voltage | 110V / 230V |
| Maximum instantaneous power | 10kVA |
| Secondary no-load voltage | 4–8V |
| Welding current | 1000–3500A |
| Protection rating | IP21 |
| Package dimensions | 50 × 33 × 35cm |
| Gross weight | 20.5kg |
How to Use
- Select the electrode and pulling attachment for the required welding or heating function.
- Prepare the repair area and connect the earth lead according to the operating instructions.
- Adjust the output for the selected operation and carry out the welding or heating task.
- Use the appropriate pulling or panel-working tool, following the vehicle repair procedure.
Use the machine according to its operating instructions and the approved repair or welding procedure.

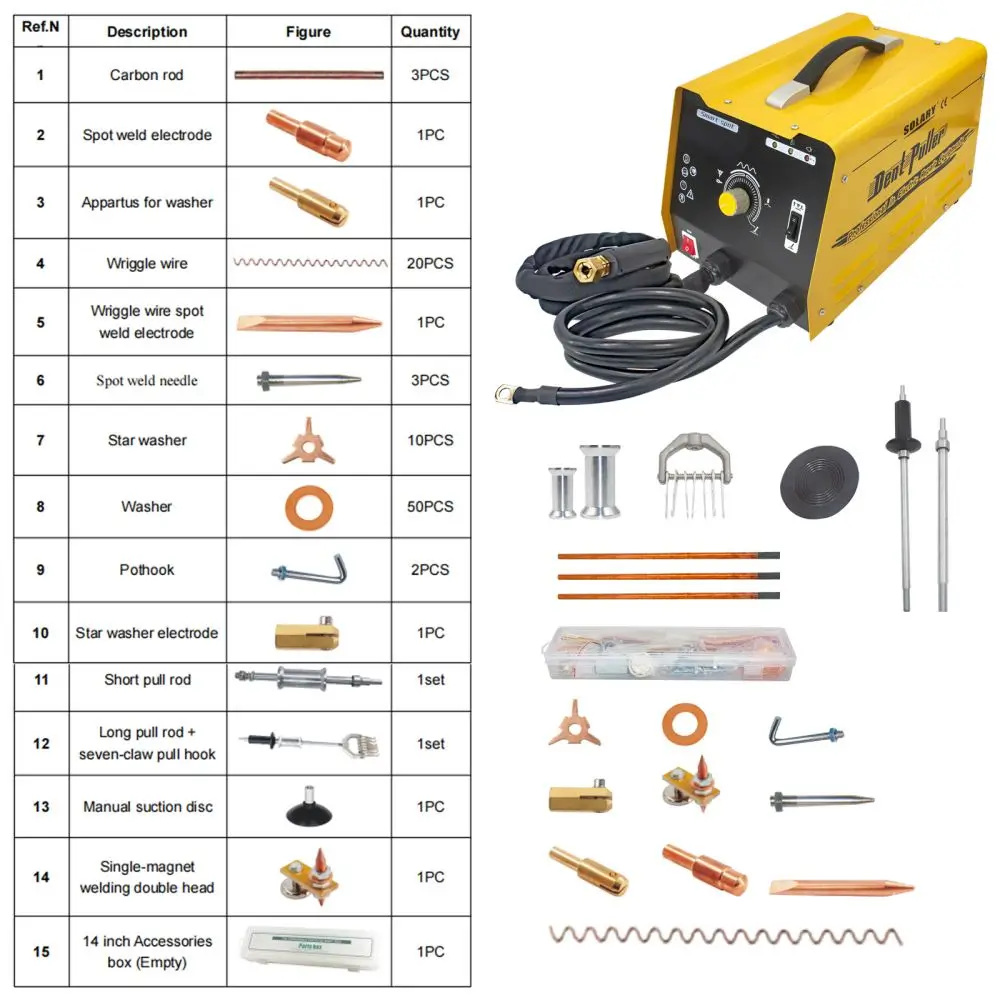

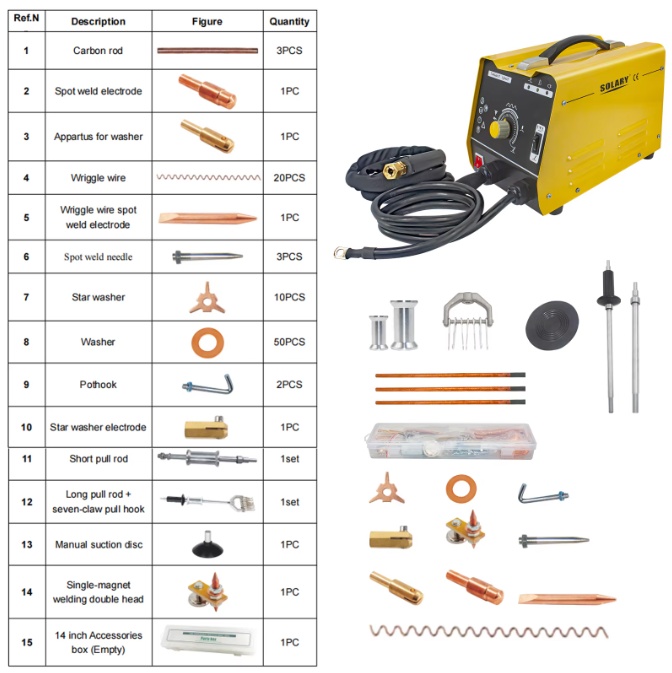

Package Contents
| Carbon rods | 3 |
|---|---|
| Spot-welding electrode | 1 |
| Washer holder | 1 |
| Wavy wire, Ø1.6mm | 20 |
| Wavy-wire spot-welding electrode | 1 |
| Star washers | 10 |
| Washers | 50 |
| Pull hooks | 2 |
| Star-washer electrode | 1 |
| Pull-rod connector | 1 |
| Short pulling rod | 1 |
| Manual suction disc | 1 |
| Empty accessory box | 1 |
| Long pulling rod with seven-claw pulling hook | 1 |
| Spot-welding needles | 3 |
| Magnetic accessory | 1 |

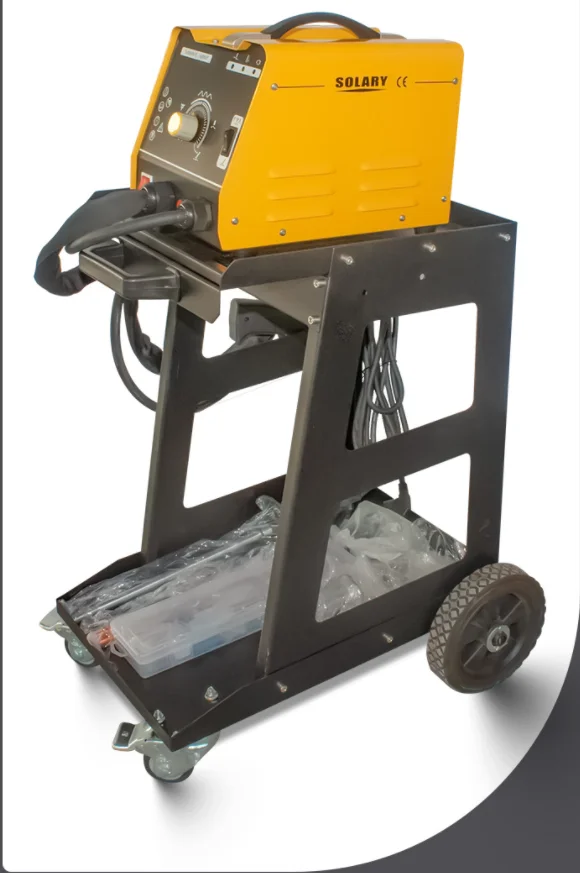

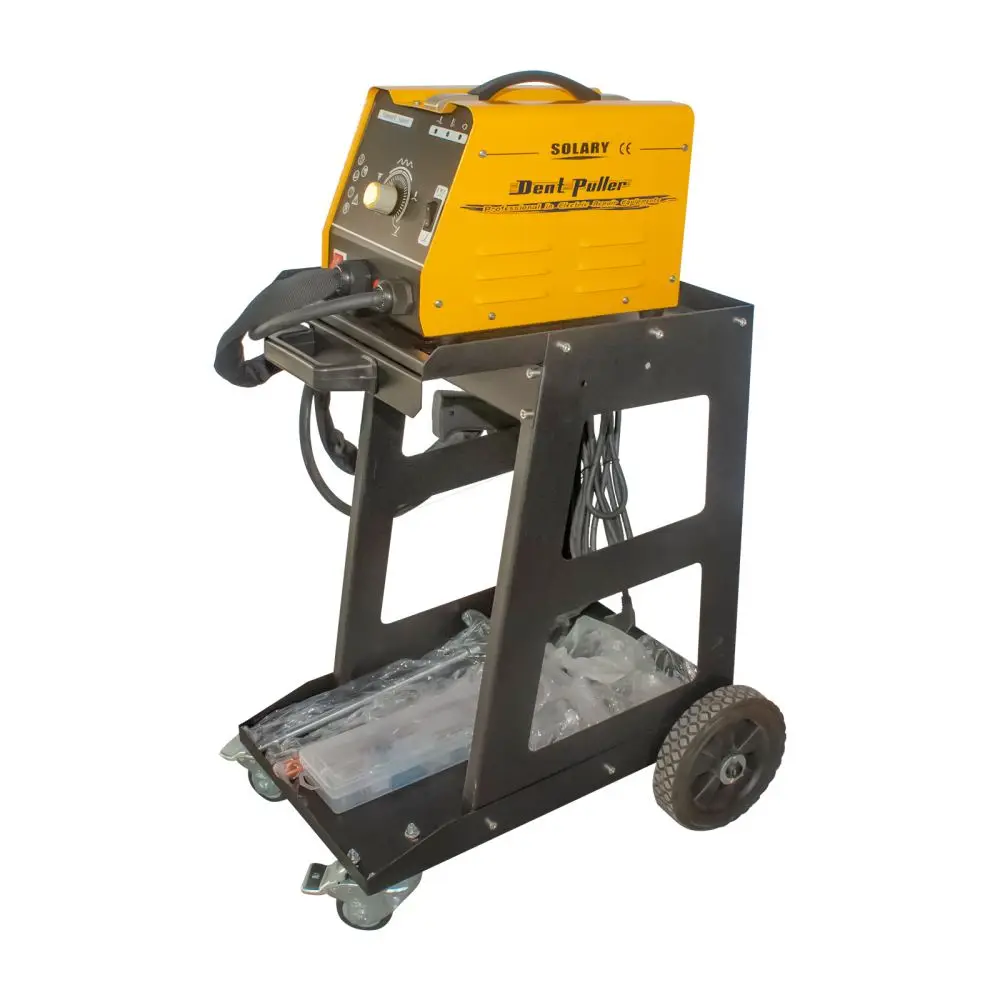

Optional accessory: workshop tool cart.
FAQ
What repair operations does the 5610 support?
It supports washer welding, stud welding, carbon rod heating, heating and flattening.
Can the output be adjusted?
Yes. The output is continuously adjustable for the selected welding or heating operation.
What is the welding-current range?
The welding-current range is 1000–3500A, with 10kVA maximum instantaneous power.
Which voltage should I order?
Specify the required 110V or 230V version when requesting a quotation.
Is a tool cart available?
Yes. A tool cart is available as an optional item.
Request a Quote
Equip your workshop or expand your body repair equipment range with the SOLARY 5610. Contact us with your order quantity, destination and required configuration for a quotation.
